Sheet Metal Takeoff – Practice Test 3

VAV Low Side Ductwork #3

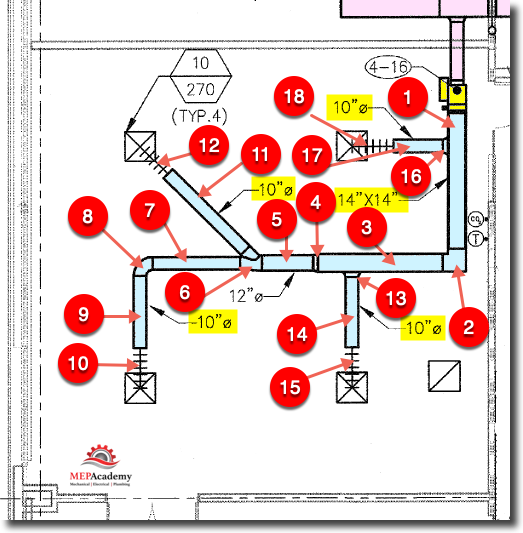

Download the PDF Takeoff form or use your own tablet or computer to record your answers that match the list for each of the following practice takeoffs. Write down a description of the duct or fitting along with the appropriate size if shown. After you have completed your takeoff, check your answers with the online answer sheet.

VAV Low Side Ductwork
VAV Low Side Ductwork

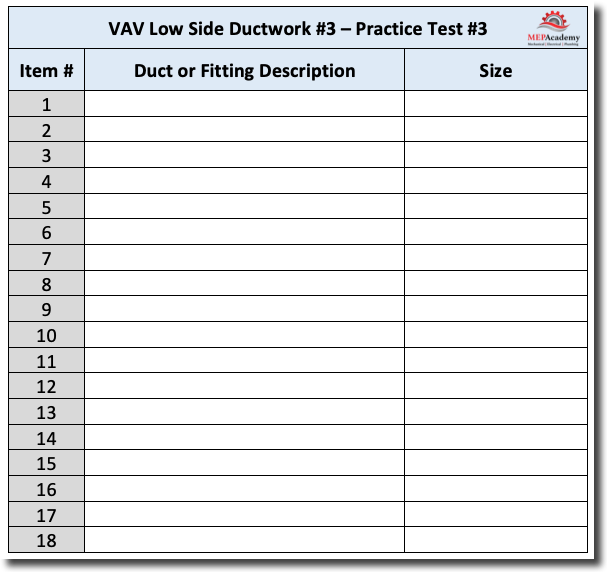

Download and Fill in the PDF Takeoff Form with answers to VAV Low Side Ductwork #3 Image Above, or record your answers somewhere so that you can compare it to the answer sheet below.

VAV Low Side Ductwork - Practice TEST #3
VAV Low Side Ductwork – Practice TEST #3

VAV Low Side Ductwork #4

Below is another round supply VAV Low Side Ductwork practice takeoff for you to get comfortable recognizing how different engineers represent the various fittings that are not defined. Again, don’t worry about the lengths of ducts, just indicate that there is a section of duct required. Download the PDF Takeoff Form if you haven’t already or use your own tablet or computer to record your answers.

VAV Low Side Ductwork #4 - Practice Takeoff
VAV Low Side Ductwork #4 – Practice Takeoff

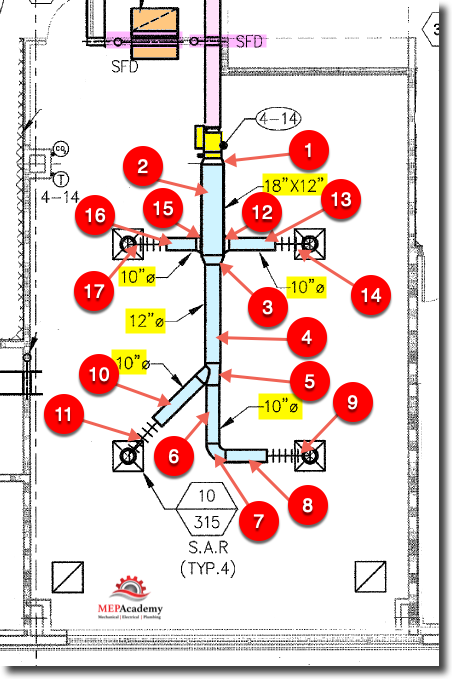

Fill in table below for each of  the numbered items shown in this image along with the description of the duct or fitting along with its size. Don’t worry about the lengths of duct at this time, just indicate if it’s a section of duct or the type of fitting.

After completing the sheet metal takeoff check your answers online with the corresponding answer sheet below for this practice test.

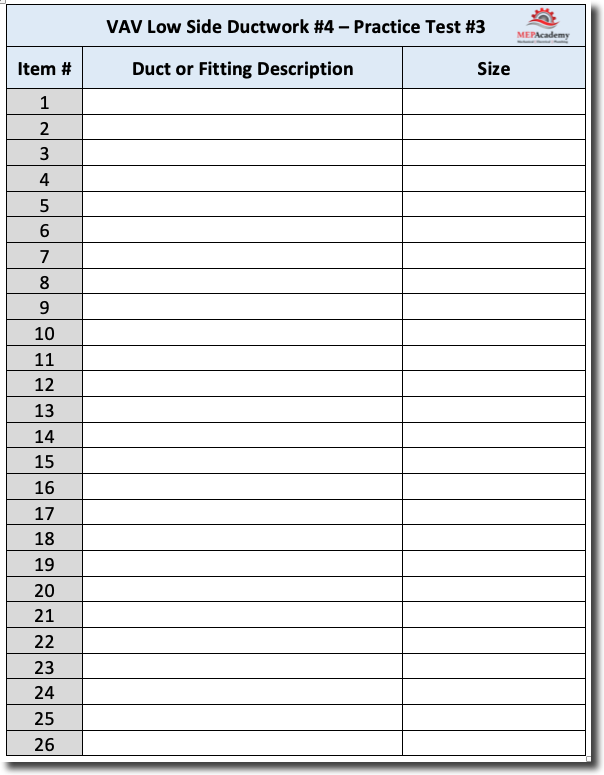

VAV Low Side Ductwork #4 Practice Test #3 Takeoff Form
VAV Low Side Ductwork #4 Practice Test #3 Takeoff Form

VAV Low Side Ductwork #5

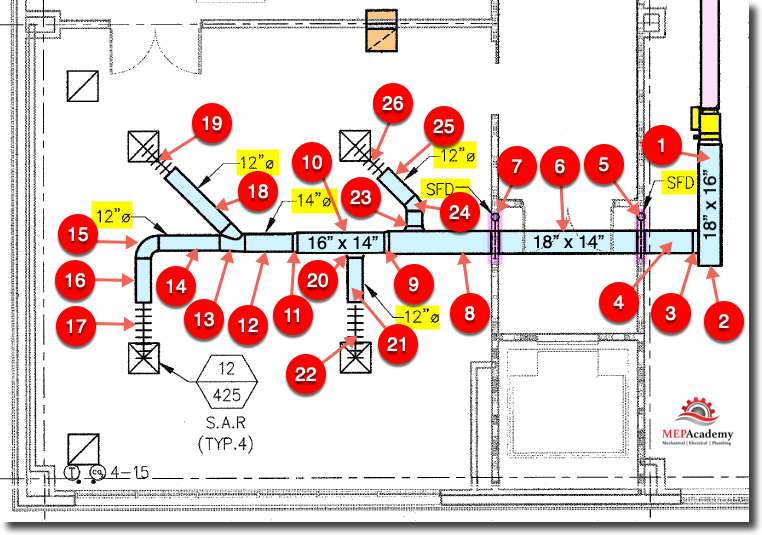

Download the PDF Takeoff form or use your own tablet or computer to record your answers that match the list for each of the following.

VAV Low Side Ductwork #5 Practice Test
VAV Low Side Ductwork #5 Practice Test

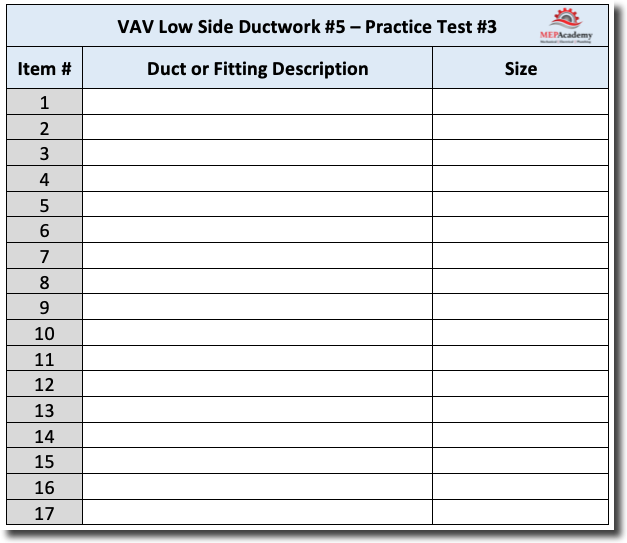

VAV Low Side Ductwork #5 Practice Test #3 Takeoff Form
VAV Low Side Ductwork #5 Practice Test #3 Takeoff Form
