Optimize Your VRF System Planning with Our Comprehensive Cost Tracking Spreadsheet. When designing or budgeting for Variable Refrigerant Flow (VRF) systems, accuracy and efficiency are critical. Whether you’re an engineer, contractor, or project manager, juggling costs, engineering metrics, and sales pricing can be a daunting task. That’s why we’ve created the ultimate Excel Spreadsheet designed specifically to streamline the process, providing you with an indispensable tool for estimating and tracking VRF system costs and engineering metrics for VRF Heat Pump and Heat Recovery systems.
If you prefer to watch the Video of this presentation, then scroll to the bottom.
What Does the Spreadsheet Offer?
Our VRF System Cost Tracking Spreadsheet is a powerful tool that provides an all-encompassing approach to analyzing and budgeting for your VRF projects. Here’s what it includes:
1. Comprehensive Cost Metrics
Cost per Ton: Know the total cost of your system based on the refrigeration capacity per system type. (VRF Heat Pump vs Heat Recovery)
Cost per Square Foot: Quickly estimate the cost for projects of varying sizes, tailored to your specific building area. Just enter the square feet of your proposed building and the historical average cost per FT2.
VRF System Cost and Engineering Metrics Tracking
2. Engineering Metrics
Square Feet per Ton: Optimize your system design by ensuring proper capacity allocation based on building requirements. Track all your VRF system designs and quickly see the engineering metrics such as square feet per Ton.
Diversity in HVAC systems refers to the ratio of the outdoor unit’s capacity to the combined capacity of all connected indoor units. It accounts for the fact that not all indoor units operate at full capacity simultaneously, as cooling or heating demands vary across spaces. For example, a system with a diversity factor of 0.8 means the outdoor unit is sized for 80% of the total indoor unit capacity, assuming staggered or partial usage. This approach improves cost efficiency, reduces equipment size, and ensures energy savings without compromising performance.
3. Detailed Cost Breakdown
Piping Costs:
Calculate costs based on linear footage and total square footage.
Sheet Metal Costs:
Track ductwork expenses accurately to prevent budget overruns.
Other Related Costs:
Incorporate ancillary expenses such as labor, insulation, and controls.
VRF System Cost Tracking Metrics for HVAC Piping, Sheet Metal, Controls and more.
Budgeting and Pricing Made Simple
The spreadsheet also includes two quick calculators designed to simplify the sales pricing process:
1. Cost per Square Foot Calculator
Input the square footage of a proposed building, and the spreadsheet instantly generates a sales price based on your pre-set cost per square foot. This feature is perfect for preliminary estimates during early project discussions.
VRF System Cost Calculator
2. Cost per Ton Calculator
Enter the required tonnage of refrigeration, and the spreadsheet provides a sales price based on your chosen cost per ton. Ideal for HVAC professionals who need fast, reliable pricing at a moment’s notice.
Why Choose Our Spreadsheet?
1. Save Time
Eliminate the need for manual calculations and consolidate all your VRF cost metrics in one easy-to-use file.
2. Improve Accuracy
Minimize errors with pre-built formulas that ensure consistency across all your project estimates.
3. Enhance Project Planning
Leverage detailed cost and engineering metrics to make informed decisions, avoid surprises, and keep projects on track.
4. Boost Sales Efficiency
The two quick calculators enable you to respond swiftly to client inquiries, providing accurate and professional estimates that can close deals faster.
Who Should Use This Spreadsheet?
This tool is ideal for:
HVAC Engineers: Optimize designs with precise square feet per ton calculations.
Contractors: Stay within budget and provide competitive pricing to clients.
Project Managers: Track costs and metrics to ensure successful project delivery.
Sales Teams: Generate accurate sales pricing quickly and confidently.
Get Started Today
Transform how you estimate and plan VRF systems with our comprehensive cost-tracking spreadsheet. Whether you’re budgeting for a new project or refining your pricing strategy, this tool will save you time, enhance accuracy, and give you the competitive edge you need to succeed.
In today’s world, sustainability is no longer just a buzzword—it’s a critical component of how we design, build, and operate buildings. Leadership in Energy and Environmental Design (LEED) has emerged as the global standard for green building certification, driving efforts to reduce environmental impact, enhance energy efficiency, and create healthier spaces for people.
Whether you’re seeking to certify a building or looking to establish yourself as a sustainability expert by earning a LEED credential, understanding the benefits and pathways is essential. This article explores what it takes to achieve LEED certification for buildings and individuals, diving into the levels of certification, rating systems, and professional credentials that empower you to lead the charge toward a greener future.
If you prefer to watch the video of this presentation, then scroll to the bottom.
LEED certification requires meeting certain standards and benchmarks that reduce the environmental impact of a building. Here’s how the process typically works:
LEED Certification Requirements for Buildings
1. Registration:
A project must first be registered with the Green Business Certification Inc. (GBCI) to start its LEED journey.
2. Select Rating System:
LEED has different rating systems based on the building’s function (e.g., healthcare, schools, homes). Selecting the appropriate rating system aligns the project’s goals with LEED’s performance expectations.
3. Meet Prerequisites and Earn Points:
Each LEED category has prerequisites that must be met. Beyond that, projects earn points in various credit categories, contributing toward the final certification score.
4. Submit for Review:
Upon completion, a project submits its documentation to GBCI, which reviews and determines the certification level.
LEED Certification Point Scale
LEED certification is awarded based on a points system, with each level signifying a higher standard of sustainability:
Certified: 40–49 points
Silver: 50–59 points
Gold: 60–79 points
Platinum: 80+ points
Each level represents an incremental achievement in sustainability practices, with Platinum being the pinnacle of resource efficiency and sustainability.

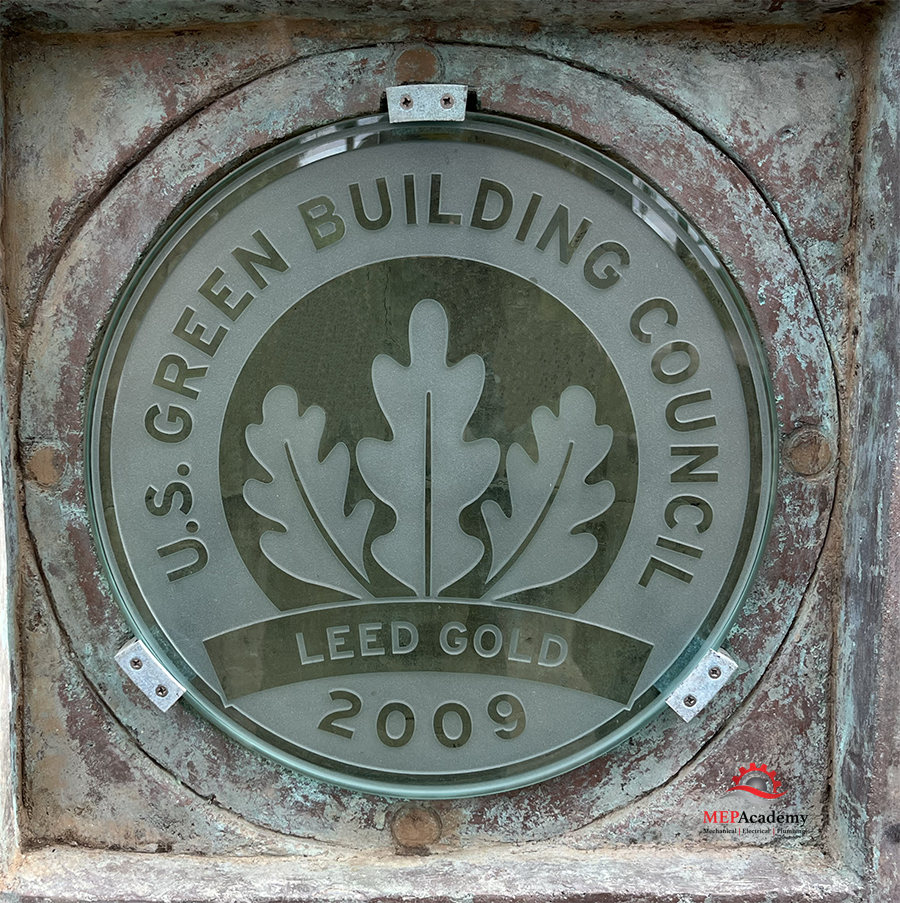

LEED Gold Certified Building Plaque posted at Building Entrance
LEED Certification Types
LEED certification is versatile and applies to various building types. Each building type follows specific rating systems designed to measure unique environmental challenges. Here are the major LEED rating systems:
Building Design and Construction (BD+C):
For newly constructed or renovated buildings, covering commercial buildings, schools, retail, healthcare, data centers, hospitality, and warehouses.
Interior Design and Construction (ID+C):
Focuses on the interior fit-out of buildings, often used for retail and commercial interiors.
Building Operations and Maintenance (O+M):
Targets existing buildings, aiming to enhance operational efficiency and reduce environmental impact without major construction changes.
Neighborhood Development (ND):
Designed for residential and mixed-use communities, emphasizing walkability, connectivity, and green infrastructure.
Homes:
Intended for single-family or multifamily residential buildings, focusing on resource efficiency, indoor environmental quality, and energy savings.
Cities:
LEED for Cities provides a framework for entire cities or specific urban districts to measure and manage key sustainability metrics. These projects focus on tracking and improving water consumption, energy use, waste management, transportation systems, and the overall human experience within the urban environment.
LEED Points System
Each rating system is organized into specific categories, with points awarded based on performance across these aspects. LEED focuses on the following main categories:
Sustainable Sites (SS): Recognizes buildings that minimize their impact on ecosystems and water resources.
Water Efficiency (WE): Aims to reduce indoor, outdoor, and process water use through efficient fixtures, landscaping, and conservation.
Energy and Atmosphere (EA): Encourages optimization of energy performance, with a focus on energy use reduction, renewable energy, and ongoing monitoring.
Materials and Resources (MR): Promotes responsible material sourcing, recycling, and reducing waste generated by building occupants.
Indoor Environmental Quality (IEQ): Focuses on air quality, lighting, acoustic comfort, and the use of low-emitting materials to enhance occupant well-being.
Innovation (IN): Recognizes creative, sustainable design and operations practices that go beyond standard requirements.
Regional Priority (RP): Awards extra points for addressing local environmental issues, such as conserving regional water supplies or air quality.
LEED-certified buildings not only reduce operational costs but also attract environmentally conscious tenants, demonstrate commitment to sustainability, and support employee health and productivity. Moreover, many jurisdictions offer tax incentives, grants, or zoning benefits to promote sustainable construction practices.
LEED Professionals
Earning a LEED professional credential by passing the certification exam offers numerous advantages for individuals in the construction, design, and sustainability fields:
Enhanced Career Opportunities: LEED accreditation is recognized globally, making you a valuable asset to employers seeking expertise in green building practices.
Achieving Sustainability through LEED Certification and Industry Recognition: LEED credentials demonstrate your knowledge of sustainable building principles and your commitment to environmental stewardship.
Increased Marketability: As sustainable practices become a priority, having LEED credentials positions you as a leader in the field and differentiates you in a competitive job market.
Professional Growth: Learning about LEED systems and sustainability principles helps you stay current with the latest trends, technologies, and regulatory requirements in the industry.
Networking and Community: Becoming certified connects you with a network of sustainability professionals, offering collaboration and growth opportunities.
Contributing to a Better Future: By supporting green building practices, you play a key role in reducing the environmental impact of the construction industry.
LEED Professional Credentials
LEED offers several professional credentials that align with different aspects of sustainability and building design. These certifications are categorized as follows:
LEED Green Associate
Description: The entry-level credential, designed for professionals who want to demonstrate their foundational knowledge of green building concepts.
Focus: Core concepts of LEED, sustainability practices, and environmental impact reduction.
Who It’s For: Anyone new to LEED, including students, professionals from related industries, or individuals interested in sustainability.
Description: The highest distinction offered by LEED, recognizing exceptional achievements and leadership in the green building field.
Eligibility: Reserved for seasoned professionals with at least 10 years of experience and significant contributions to the green building industry.
Who It’s For: Established leaders, educators, and innovators in sustainability.
In addition to broad certifications, individuals can pursue additional specialty designations or continuing education credits in areas like:
Net-zero energy and water design.
Resilience and adaptation strategies.
Renewable energy integration.
After certification, individuals are required to maintain their credentials through ongoing education. This ensures they stay updated with evolving sustainability standards and technologies.
Summary
LEED (Leadership in Energy and Environmental Design) is the world’s leading certification system for sustainable building practices, providing a framework for designing, constructing, and maintaining environmentally responsible spaces. For buildings, LEED certification promotes resource efficiency, energy savings, and healthier environments, with certification levels ranging from Certified to Platinum. The system applies to various building types and uses rating systems tailored to new constructions, interiors, existing buildings, neighborhoods, and homes.
For individuals, LEED credentials such as Green Associate and LEED AP demonstrate expertise in green building principles, offering enhanced career opportunities and industry recognition. Together, LEED-certified buildings and professionals drive the shift toward a more sustainable and resilient built environment, helping to mitigate environmental impact while fostering innovation and community well-being.
LEED Certification Requirements for Buildings and Individuals
Modern HVAC systems aim to balance energy efficiency, indoor comfort, and operational simplicity. One of the most effective energy-saving techniques in HVAC systems with Direct Digital Control (DDC) is the Supply Air Temperature Reset Strategy. This strategy optimizes the operation of air handlers serving Variable Air Volume (VAV) terminal boxes by adjusting the supply air temperature dynamically based on demand.
If you prefer to watch the video of this presentation, then scroll to the bottom.
What is a Supply Air Temperature Reset Strategy?
In an air handler serving VAV terminal boxes, the SAT reset strategy dynamically adjusts the temperature of the air supplied to the duct system during part-load conditions. Instead of maintaining a fixed SAT 55°F (12.7°C), the system modulates this temperature based on real-time building conditions, such as outside air temperature and damper positions. The 55°F (12.7°C) is required to meet the peak load, but the building operates more often at less than peak demand during milder weather.
Supply Air Temperature Reset using Outside Air Temperature
The supply air temperature reset will require that there is a DDC controller mounted on or near the Air Handler that will have various input and output devices connected to it. The AHU Controller will use an outdoor temperature sensor to provide an analog input of the ambient outdoor temperature. The AHU controller will also receive an input signal from a discharge air temperature sensor indicating the current supply air temperature.
HVAC Controls using Supply Air Temperature Reset based on Outside Air Temperature
When outdoor air temperatures are mild or cooler, indicating lower cooling demand, the DDC system incrementally raises the SAT set point to reduce the cooling load on the air handling unit which saves energy.
For example, as the outdoor air temperature drops below a pre-defined threshold, such as 70°F (21°C), the SAT is gradually reset upward from its baseline value such as 55°F (12.7°C), toward a higher limit such as 65°F (18.3°C), typically in 1 to 2°F increments. This reset process continues as outdoor temperatures decrease, ensuring energy savings by reducing the load on the chiller’s compressors. Several things can happen when the supply air temperature is increased that needs to be monitored such as the maximum static pressure available, the ability for dehumidification and increased airflow. We’ll cover all three of these.
SAT Reset Chart Supply Air Temp and Outdoor Temperature
What happens to the System with higher Supply Air Temperatures?
You could set the supply air reset temperature higher, such as 65 to 70°F (18.3 to 21°C), but setting the supply air temperature at an upper limit can introduce several drawbacks and concerns, including:
Reduced Dehumidification
The higher SAT may not cool the air enough to reach the dew point, leading to inadequate moisture removal and higher indoor humidity levels, especially in humid climates. To prevent the Supply Air Temperature reset strategy from compromising dehumidification and ensuring the required relative humidity levels are maintained, several control strategies and hardware devices are typically employed:
A humidistat (or humidity sensor) can be integrated into the control strategy. If the indoor RH exceeds a set threshold (typically around 60%), the system can override the SAT reset and maintain a lower SAT, ensuring that sufficient dehumidification occurs to maintain comfort and meet code requirements.
Outdoor air humidity sensor can help the system determine whether outside air is suitable for cooling and dehumidification. In humid climates, the system may rely on outdoor enthalpy rather than just temperature to control SAT and ensure effective dehumidification.
When a higher SAT is implemented, the system continuously monitors the outdoor or indoor humidity levels via sensors and humidistats, or both. If the RH exceeds the preset limit, the system either halts the SAT reset strategy or adjusts the SAT to a lower value to maintain effective dehumidification.
Increased Airflow Requirements
To maintain the same sensible cooling capacity, airflow (CFM) must increase as Delta T (temperature difference between supply and room air) decreases, potentially overloading fans and ductwork. Higher airflow requirements to meet cooling loads can lead to increased fan energy consumption, offsetting the intended efficiency gains of SAT reset.
What Happens to the CFM Delivered to the Space?
When the supply air temperature is reset higher due to a lower outdoor air temperature, the air delivered to the zones becomes warmer. Using the sensible heat load equation, (Q = CFM x 1.1 x Delta-T), a higher SAT reduces (Delta T) (the difference between room temperature and supply air temperature). To maintain the same sensible heat removal capacity (Q), the airflow (CFM) must increase to compensate for the reduced (Delta T). This ensures the HVAC system continues to meet the cooling load in the space, despite the warmer supply air.
What Happens to the Static Pressure?
The static pressure limits in an HVAC system directly influence the maximum supply air temperature reset by determining the system’s ability to deliver sufficient airflow (CFM) to offset reduced cooling capacity from higher SATs.
Effect on the Economizer
A higher supply air temperature setpoint increases economizer use because it allows the HVAC system to utilize outdoor air for cooling over a broader range of outdoor temperatures. With a higher SAT, the air handler does not need to cool the air as much, so outdoor air at moderately warm temperatures can still meet the cooling requirements without activating mechanical cooling. This expands the economizer’s operating range, maximizing free cooling and reducing energy consumption.
Supply Air Temperature Reset using Trim and Response
The supply air temperature reset sequence using trim and response logic based on VAV box damper positions begins with the Direct Digital Control (DDC) system continuously monitoring the damper positions of all VAV terminal boxes served by the air handling unit. If the majority of the dampers are less than a specified open percentage, such as 60%, indicating reduced cooling demand, the system gradually raises the SAT set point in small increments, typically 1 to 2°F, to save energy by reducing the cooling load.
HVAC Controls Supply Air Temperature Reset using Trim and Respond
Conversely, if a significant percentage of dampers, such as 20% or more, are nearly fully open such as above 90%, indicating higher cooling demand, the SAT set point is lowered incrementally to provide sufficient cooling to meet the zone requirements. The system uses real-time feedback from the damper positions to continuously adjust the SAT dynamically within predefined minimum and maximum limits, typically between 55°F and 65°F. This approach ensures that the SAT is optimized to balance energy efficiency with occupant comfort, responding dynamically to varying cooling demands across the served spaces.
Consider a commercial office building with an air handler serving 10 VAV terminal boxes. During peak summer afternoons, all VAV dampers are close to fully open, indicating high cooling demand. The DDC system maintains the SAT at 55°F (12.7°C) to meet this load.
In the early evening, as occupancy decreases, none of the dampers remain fully open. The DDC system resets the SAT to 65°F (18.3°C). This
Reduces chiller and fan energy consumption.
Maintains comfort as the zones with reduced occupancy now require less cooling.
Conclusion
A Supply Air Temperature Reset Strategy is a powerful tool for improving the energy efficiency of HVAC systems while maintaining comfort in buildings. By leveraging modern DDC systems, building operators can implement this strategy to reduce energy costs, enhance equipment longevity, and contribute to sustainable building operations.
Adopting this strategy is not just an upgrade, it’s a commitment to smarter, more efficient, and environmentally conscious building management.
HVAC Controls Supply Air Temperature Reset Strategy
In this article, we break down two essential smoke control strategies designed for large commercial spaces. First, we cover a targeted smoke control method tailored for hotel guestroom floors, keeping hallways and exit routes safe during an emergency. Then, we explore how an atrium smoke control system works to keep open, multi-story spaces clear of smoke by using smoke exhaust fans. These are just a couple of the many approaches used to manage smoke effectively and maintain safe evacuation paths.
Hotel Zoned Smoke Control System
A Highrise hotel can use a zoned smoke control pressurization system to keep smoke from spreading across guestroom floors during a fire, ensuring that hallways, stairwells, and elevators remain safe for occupants to evacuate. Here’s how the system typically works:
Dedicated Smoke Exhaust System for Hotel Guestroom Floors
When smoke is detected on a guestroom floor, the smoke control system activates automatically. In a dedicated smoke control system, the equipment is only used for smoke control and will require frequent testing.
The supply fans pressurize areas critical for evacuation, such as stairwells, elevators, and corridors, by pumping in fresh air. This pressurization creates a pressure differential between these escape routes and the potentially smoke-filled spaces, which forces smoke back into the affected areas and prevents it from entering escape paths.
The Sandwich Technique
The sandwich technique is a zone smoke control method used in high-rise buildings to contain smoke to the fire floor and prevent vertical spread. It works by exhausting smoke directly from the fire floor while pressurizing the floors immediately above and below with supply fans, creating a pressure “sandwich.” This differential pressure keeps smoke isolated to the fire floor, ensuring that adjacent floors remain smoke-free.
The floor above and below the fire zone is positively pressurized, while the floor with the fire is under negative pressure created by the smoke exhaust fan. There are smoke control dampers on each of the supply and exhaust ducts that are opened or closed depending on the floor or fire zone. The exhaust damper is opened only on the fire floor, and the supply dampers are opened on the floor above and below the fire floor. This is just one strategy. By venting smoke directly from these spaces, the system reduces smoke density at the fire source and improves visibility for both occupants and emergency responders.
This is a dedicated system where the smoke control equipment is used only during emergency and is not part of the regular HVAC system.
Stairwell Pressurization
Most building codes will require that the stairwell in a high rise be pressurized to keep the smoke out. This allows the occupants a safe egress out of the building without having to breathe in smoke. A dedicated fan system supplies clean air into stairwells, creating a pressure differential that prevents smoke infiltration. The pressurization created by the fan must be significant enough to prevent smoke from entering the stairwell but also allow occupants to open the stairwell door.
In a high-rise, a vestibule is often used for smoke control with stairwells or elevator lobbies, to act as a buffer zone between areas with different pressures. These enclosed spaces are pressurized with fresh air during a fire to prevent smoke from entering, ensuring that stairwells and elevator shafts remain safe for evacuation and firefighter access.
Non-dedicated Smoke Control System
Here is how a non-dedicated smoke control system in a high-rise hotel using existing HVAC air handlers that supply and return air on each guestroom floor during normal operation, with each floor designated as a separate fire zone:
Using an Air Handler (HVAC System) in a Smoke Control System
Upon fire alarm activation on any guestroom floor, the smoke control system engages, signaling the HVAC air handler for the affected floor to switch to smoke control mode. The dampers in the air handler switch to smoke control by shutting the return damper and opening the outside air damper. The air handler serving the fire floor closes the supply air damper on that floor to prevent spreading the fire to other areas. The supply dampers on the floors above and below the fire floor open to pressurize and sandwich the fire floor to prevent smoke infiltration.
The exhaust air damper on the fire floor opens, while the exhaust dampers on all other floors close. This will create a negative pressure on the fire floor preventing smoke from exiting the floor. The smoke will be exhausted out the air handler or in this setup a smoke exhaust fan is provided.
The HVAC air handler on the floors directly above and below the fire floor activate in pressurization mode, supplying fresh air to create a positive pressure barrier.
This pressurization prevents smoke from migrating vertically, confining it to the fire floor. Stairwells, corridors, and elevator shafts are pressurized separately to keep them free of smoke, allowing safe evacuation routes for occupants and access for firefighters.
Atrium Smoke Control
When a fire ignites, it begins to consume nearby materials, releasing heat, smoke, and toxic gases. The combustion process produces high temperatures, causing hot air to rise. Flames reach upward, creating a vertical plume of heat and smoke above the fire source. The intensity and spread of the fire depend on fuel type, oxygen availability, and surrounding materials.
Atrium Smoke Exhaust System
The rising heat from the fire generates a vertical column of smoke and hot gases known as the smoke plume. This plume carries particulates, toxic gases, and intense heat toward the ceiling. As the plume rises, it pulls in the surrounding air, growing in size and cooling slightly. The plume’s upward motion spreads smoke and heat vertically, reaching ceiling levels quickly, especially in tall spaces.
A smoke control system for an atrium is specifically designed to manage and exhaust smoke from the large, open space of an atrium during a fire. Atriums are common in modern commercial and institutional buildings like hotels, shopping malls, and office complexes, where they provide open, multi-story gathering spaces that are visually appealing. However, their large volume and vertical open design present unique challenges for smoke control, as smoke can accumulate and spread quickly throughout multiple levels. A well-designed atrium smoke control system prevents smoke buildup, enhances visibility for evacuation, and keeps pathways clear for firefighters.
Ceiling Jet Stream
Upon reaching the ceiling, the hot smoke and gases spread outward, forming a layer just below the ceiling, this is called the ceiling jet. The ceiling jet moves horizontally, carrying intense heat and smoke across the ceiling surface.
When the ceiling jets hits the wall, it turns back thickening the smoke layer. This jet is key to triggering fire detection systems, as smoke detectors and sprinklers respond to the elevated temperatures in this layer. The ceiling jet influences the spread of heat and smoke to other areas and guides smoke control strategies.
Smoke Layer
As the ceiling jet spreads, smoke accumulates, forming a hot, dense smoke layer beneath the ceiling. This smoke layer thickens as the fire burns, moving downward over time and reducing visibility in the space. The smoke layer is hazardous, containing toxic gases and reducing breathable air near floor levels as it descends. Smoke control systems aim to slow or halt the smoke layer’s spread to maintain visibility, protect egress paths, and aid firefighting efforts. The international building code section 909.8.1 states that the lowest horizontal surface of the smoke layer must be maintained at 6 feet (1829 mm) above any walking surfaces that is part of an egress within a smoke zone.
Make-Up Air System
To ensure the smoke exhaust system works effectively, a make-up air supply is often required to replace the air that’s being expelled. Make-up air helps maintain proper airflow and prevents negative pressure that could disrupt smoke control. This air supply can be introduced from adjacent zones, louvers, or through dedicated air intakes positioned lower in the atrium.
The make-up air system is designed to ensure that fresh air enters the space below the smoke layer, reducing the chance that smoke will be pulled downwards, which could impede evacuation and visibility.
What is Plug holing
In smoke control systems, plug holing is a phenomenon where cool air enters and mixes with the hot smoke layer near an exhaust vent, disrupting the effective removal of smoke. Instead of drawing out hot smoke from the upper layer, the exhaust fan begins to pull in the cooler, denser air from below. This reduces the efficiency of the smoke exhaust system, as it allows smoke to accumulate rather than being fully vented out.
Plug Holing causes problems for Smoke Exhaust Systems
Plug holing is particularly problematic in high atriums or large spaces, where temperature differences between the smoke layer and ambient air can cause this mixing. To prevent plug holing, smoke control systems may use carefully designed exhaust vent placements, larger vent sizes, or specific airflow controls to ensure that only the smoke layer is removed, maintaining clear and safe evacuation paths.
Stratification
Stratification occurs when a layer of warm air forms just below the roof due to solar heating. This layer can interfere with smoke detection and smoke layer behavior.
Stratified Layer Interferes with Smoke Layer
When the sun heats the roof, the air beneath it warms up and creates a thermal barrier. This warm air layer remains at the ceiling level, preventing cooler air and smoke from rising naturally.
