On many commercial construction projects, HVAC and electrical systems install exactly as shown on the drawings. Equipment is set, Conduit is run. Ductwork and piping is complete. Inspections pass.
Then startup begins — and systems don’t work together.
At that point, the issue usually isn’t installation quality.
It’s coordination.
HVAC electrical coordination problems rarely begin in the field. They start much earlier, during estimating and scope review, when responsibilities between trades are assumed instead of clearly defined.
Below are five of the most common HVAC and electrical coordination mistakes that cause RFIs, change orders, failed inspections, and delayed occupancy.

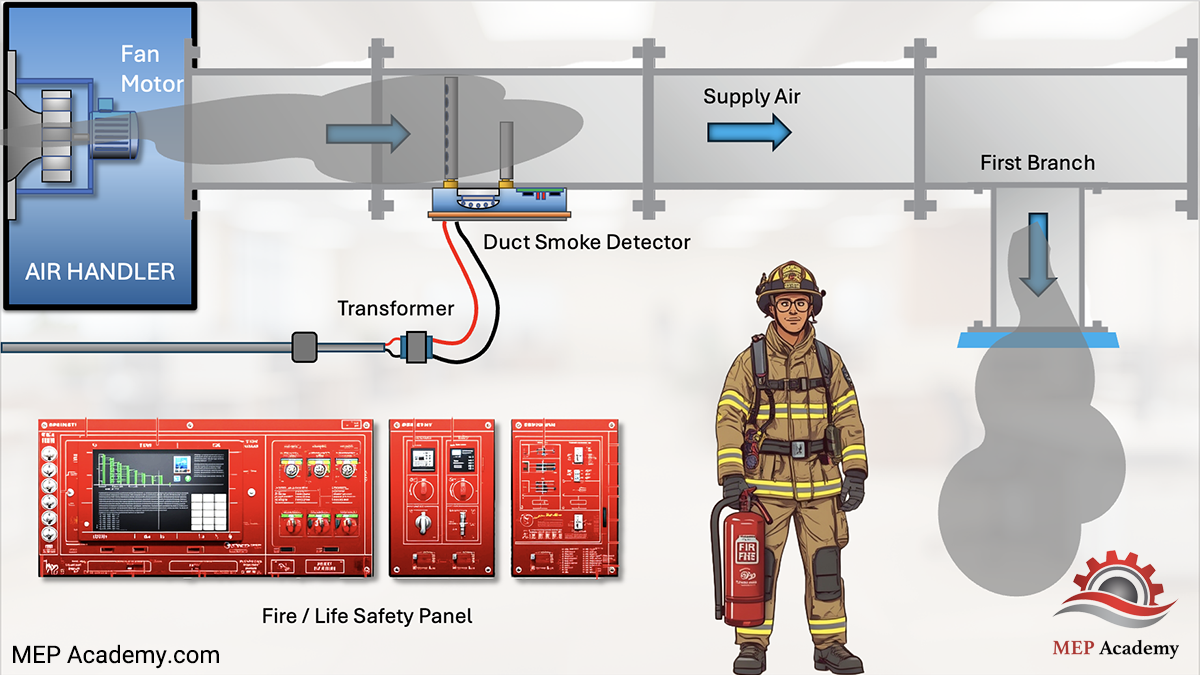

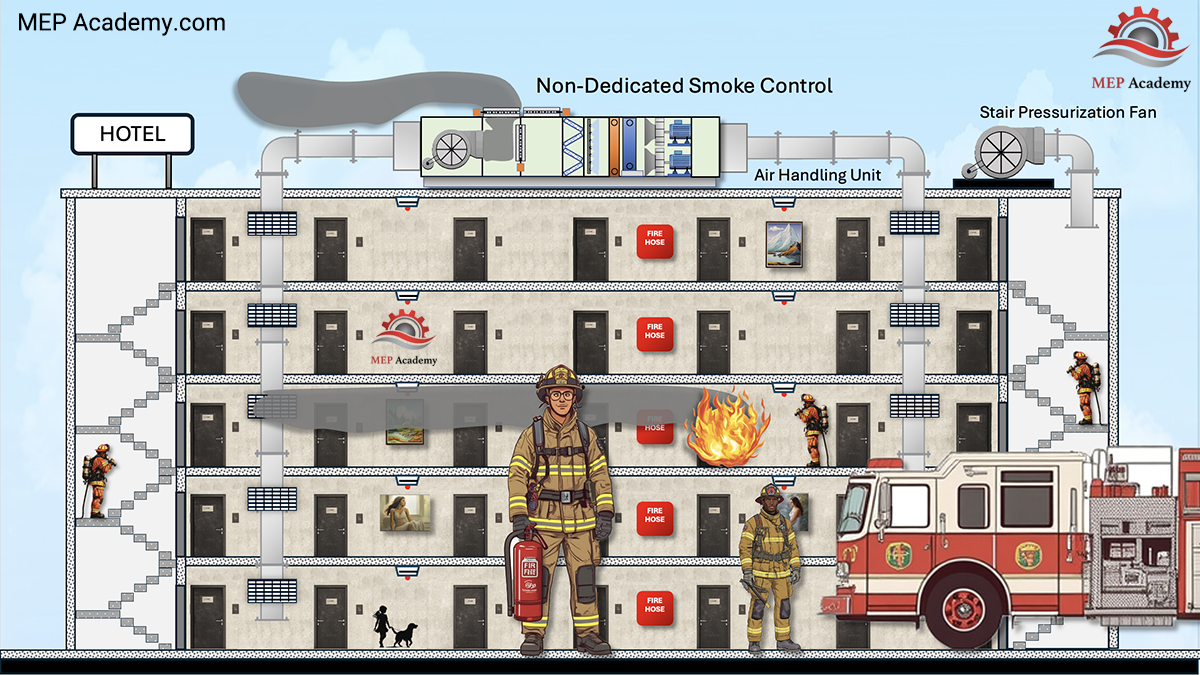

1. Duct-Mounted Smoke Detector Shutdown Wiring
Duct smoke detectors are physically installed in ductwork, so they are often assumed to belong to the mechanical contractor.
However, these devices:
- Require electrical power
- Must interface with the fire alarm system
- Must shut down air-moving equipment during a smoke event
Three systems are involved:
- Mechanical
- Electrical
- Fire alarm
Mechanical drawings usually show detector locations.
Electrical drawings may show only general power distribution.
Fire alarm drawings show monitoring points — but not always the shutdown wiring path.
The result?
The detector gets installed — but the shutdown sequence fails during testing.
Building codes typically reference the International Mechanical Code and NFPA 90A for smoke detection in air distribution systems. The coordination issue isn’t the code requirement — it’s making sure power, monitoring, and shutdown wiring responsibilities are clearly assigned before installation.

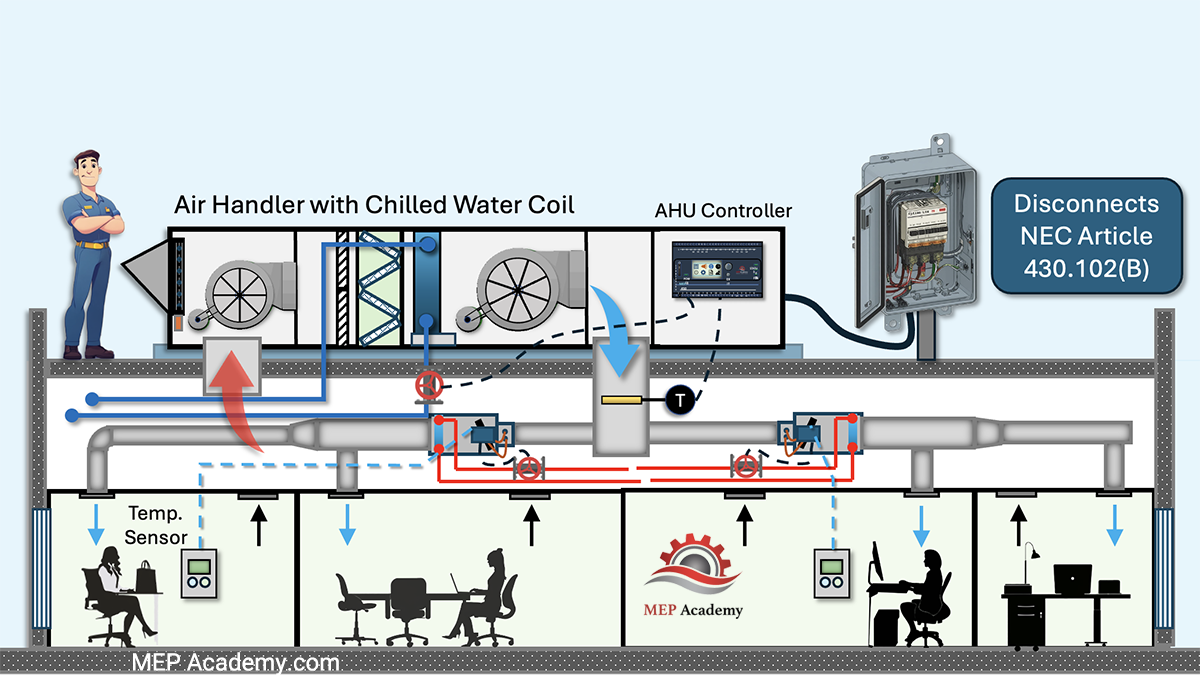

2. Missing Equipment Disconnect Switches (NEC 430.102(B))
The National Electrical Code requires a disconnecting means within sight of motor-driven equipment.
NEC Article 430.102(B) requires:
A disconnecting means located within sight from the motor and driven machinery location.
This applies to rooftop units, air handlers, exhaust fans, pumps, and similar equipment.
The coordination problem typically occurs because:
- Mechanical drawings show the equipment.
- Electrical drawings show feeders and panels.
- Disconnects are not clearly identified.
Mechanical contractors assume the electrical contractor is providing it.
Electrical contractors may exclude it if it is not explicitly shown.
The issue often surfaces only when equipment arrives onsite and no disconnect has been installed — resulting in added cost and schedule impact.
Proper HVAC electrical coordination requires confirming:
- Disconnect type
- Amperage rating
- Mounting location
- Scope responsibility
Early clarification prevents expensive field corrections.

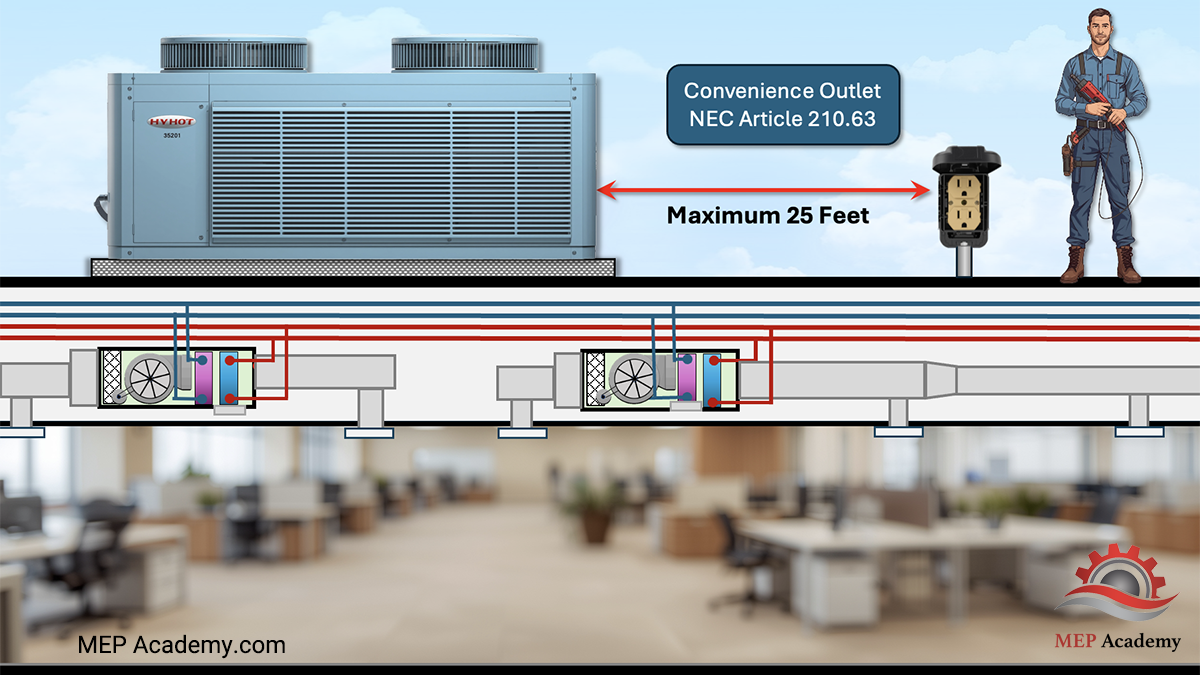

3. Missing Service Receptacles (NEC 210.63)
Maintenance personnel require power to service equipment safely.
NEC Article 210.63 requires:
A 125-volt, single-phase, 15- or 20-ampere receptacle outlet within 25 feet of HVAC equipment.
Despite this requirement, service receptacles are frequently:
- Omitted from electrical plans
- Assumed to be included
- Not clearly assigned to a trade
The problem is typically discovered during inspection or turnover.
Late installation may require:
- Surface conduit
- Additional roof penetrations
- Coordination with finished architectural elements
For estimators, this is a critical preconstruction review item.
4. Control Wiring and Building Automation System (BAS) Interfaces
Modern HVAC systems rely heavily on controls and interlocks.
Typical scope boundaries include:
- Electrical contractor provides power wiring
- Mechanical contractor provides equipment
- Controls contractor provides system logic
The gray area often includes:
- Control transformers
- Interlock wiring between systems
- Control conduit installation
- VFD communication wiring
- Shutdown signals
Because equipment can power up successfully without these connections fully integrated, coordination issues often appear only during startup or commissioning.
At that point, multiple trades may need to return to complete work that was assumed to be included elsewhere.
Clear scope definition during estimating prevents these late-stage conflicts.
5. Fire Alarm Shutdown Interfaces and System Interlocks
Many HVAC systems are required to stop, start, or change operating mode in response to fire alarm signals.
Mechanical drawings may indicate shutdown intent.
Fire alarm drawings identify monitoring points.
Electrical drawings may not show the interconnecting wiring.
Common coordination gaps include:
- Who provides the relay?
- Who runs wiring to the equipment?
- Who verifies shutdown sequence during testing?
Each trade may complete its individual scope — yet the system fails functional testing.
This is one of the most expensive coordination failures because it is typically discovered at commissioning.
The Root Cause of HVAC Electrical Coordination Failures
Across all five examples, the underlying issue is the same:
Drawings describe system intent.
Coordination defines execution.
The costliest problems between HVAC and electrical trades are rarely installation errors.
They are scope definition problems that begin during estimating and carry forward into construction.
By the time systems reach startup, the cost of correcting assumptions is significantly higher than identifying them during preconstruction.
How Contractors Prevent These Coordination Problems
Estimators and project managers should:
- Identify inter-trade coordination items early
- Qualify proposals clearly
- Confirm code-required accessories
- Clarify shutdown and interlock responsibilities
- Review BAS and fire alarm interface details before bid
Small coordination gaps during estimating become large financial impacts during commissioning.
Final Thoughts
Most HVAC electrical coordination problems don’t begin in the field.
They begin when drawings are interpreted differently, or when responsibilities are assumed instead of clarified.
If you’ve ever had a project where equipment installed perfectly but failed startup due to wiring or shutdown issues, you’ve already experienced this firsthand.
The solution is not more field labor.
The solution is better scope definition.
